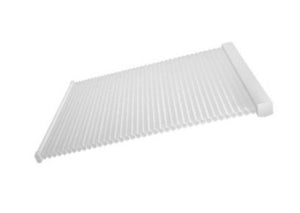

Airstream Skylight Shade 14-1/2" x 22-3/4", Gray 704120-01 or White 702804-04

Airstream Skylight Shade 14-1/2" x 22-3/4", Gray 704120-01 or White 702804-04

Add to wishlist Remove from wishlist
Regular price $59.35 USD
Regular price Sale price $59.35 USD
Sale Sold out
Shipping calculated at checkout.
Color

Pleated shade for Airstream Skylight 14-1/25" x 22-1/2" - 381318-060

Colors Available: Gray or White

See parts manuals for placement and compatibility.

Compatibility: 1999 - Present various Airstream models (will not fit 25FB models)



How To Install Pleated Skylight Shades

  • Locate pre-drilled holes in headrail (A). They are located on the underside of the headrail behind the first fabric pleat. The holes will have plastic installation grommets. Be careful not to damage the fabric when installing the screws. A long screw bit is recommended (not included).
  • Position headrail (A) in skylight opening. Install screws through the headrail (A) in the pre-drilled holes and into the skylight frame.
  • Push center rail (B) next to the headrail (A).
  • Position rail (C) to the other end of the skylight, then install screws thru pre-drilled holes and into frame.
Note: Bottom rail should hang approximately 1″ short in free hang position (before installing bottom rail to opening). This is what creates the tension. If the shade will not stay in up position after installation, it is the incorrect size for the opening.
